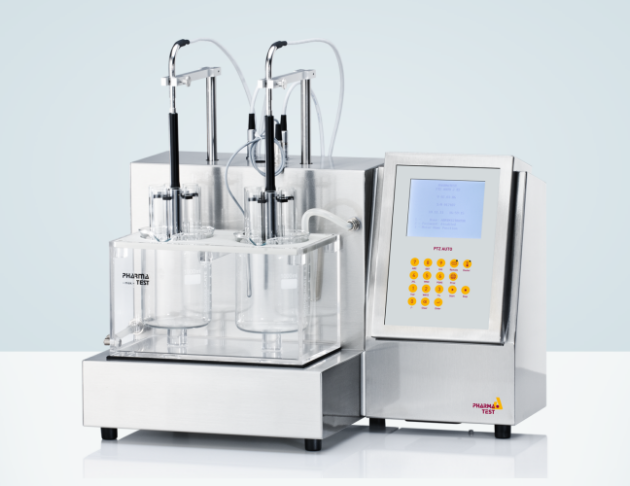

Pharma Test Tablet Disintegration Testing Instruments
錠劑崩解測試儀

全自動PTZ AUTO EZ儀器有單，雙，三和四站型號可供選擇。儀器自動檢測錠劑和其他固體劑型的個體崩解時間。每個自動崩解籃可以獨立操作，並包括溫度傳感器。它們的裝備完全符合USP <701/2040>和EP <2.9.1 / 2.9.1.2>藥典要求。


Technical Specifications

Parameter Specifications
Display LED backlit LCD, 320x240 pixels, 9" diagonal, approx. 90x120mm
Data Entry Alpha-numerical keys and function keys
Testing Stations 1, 2, 3 or 4 stations – each independently operateable
Testing Time Programmable from 1 second up to 23h, 59m, 59s
Auto Basket Lift Raises samples out of the medium at test end
Security Systems Password protection for calibration and validation
OQ Information Programmable time sequence information to perform OQ
Thermostat Built-in 1000 W heating tube and circulation pump, water bath temperature programmable from 25.0° - 45.0°C, overheating protection
Temperature Accuracy ± 0.3°C
Safety Systems Pressure switch to protect from overheating (no liquid flow - no heating - no pump); Thermo switch and thermo fuse to protect the heating system in case of electronical fault
Stroke Frequency 30 per minute
Stroke Accuracy ± 1 stroke
Stroke Height 55 mm
Stroke Height Accuracy ± 1 mm
Interfaces RS-232 serial interface for external control and data transfer Parallel PCL printer port (USB printer adapter available)
Instrument Dimensions PTZ AUTO 1EZ approx. 61 x 37 x 54cm (width x depth x height); PTZ AUTO 2EZ approx. 61 x 37 x 54cm (width x depth x height); PTZ AUTO 3EZ approx. 76 x 37 x 54cm (width x depth x height); PTZ AUTO 4EZ approx. 91 x 37 x 54cm (width x depth x height)
Packaging Dimensions PTZ AUTO 1EZ approx. 80 x 51 x 70cm (width x depth x height); PTZ AUTO 2EZ approx. 80 x 51 x 70cm (width x depth x height); PTZ AUTO 3EZ approx. 80 x 51 x 70cm (width x depth x height); PTZ AUTO 4EZ approx. 107 x 77 x 95cm (width x depth x height)
Net / Gross Weight PTZ AUTO 1EZ approx. 24 / 32kg; PTZ AUTO 2EZ approx. 29 / 36kg; PTZ AUTO 3EZ approx. 38 / 53kg; PTZ AUTO 4EZ approx. 46 / 109kg
Certification All components certified to USP / EP requirements
CE / EMC Certification All CE / EMC Certification provided
Validation All IQ & OQ documents included
